Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A
  6. BA541-10-D0-A

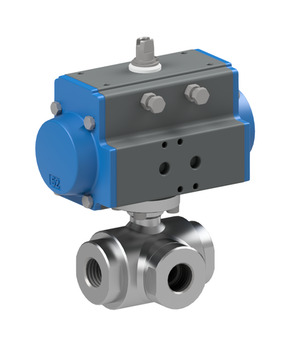

Ball valve with pneumatic actuator BA541-10-D0-A

Ball valve with pneumatic actuator BA541-10-D0-A

Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A; ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 1"; Nominal diameter 25mm; Pressure range 0…64bar; Length 102mm; Actuator PAD063; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.31 Kg
Short Itemnumber: BA54110D0A
https://www.stasto.rs/web/image/product.template/157350/image_1920?unique=99d6a1d

ball valve with pneumatic actuator series BA541-D0-A, BA542-D0-A; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; double acting actuator ATEX II 2 G/D c T6; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 1"; nominal diameter 25mm; pressure range 0…64bar; length 102mm; actuator PAD063; ball T

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Ball
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1"
DN 25 mm
Length 102 mm
Designs
Ball T
design
Design ATEX
pressure
Pressure range 0...64 bar
characteristics
Actuator PAD063
Ball valve made of stainless steel BA541-10-B-A
BA541-10-B-A x 1.0
Ball valve made of stainless steel BA541-10-B-A
Ball valve made of stainless steel Series BA541-B-A, BA542-A; ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1"; Nominal diameter 25mm; Pressure range 0...64bar; Length 102mm; Ball T; Flange ISO5211 F05; Square 14mm
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
