BA543-50-4-S0

Name: BA543-50-4-S0
Brand: STASTO
SKU: BA543-50-4-S0
Price: 331738.0 RSD
Availability: InStock

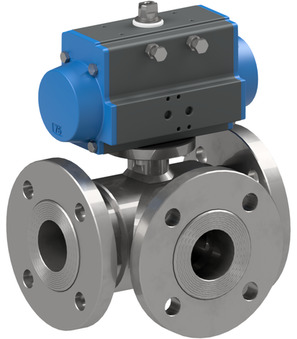

Flanged ball valve with pneumatic actuator Series BA543; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 220mm; Pressure range 0...20bar; Flange ANSI150; Actuator PAS1155; Ball T; Flow path 04

Intrastat No.: 84818081
Country of origin: Italy
Weight: 28.28 Kg
Short Itemnumber: BA543504S0

flanged ball valve with pneumatic actuator series BA543; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; length 220mm; pressure range 0...20bar; flange ANSI150; actuator PAS1155; ball T; flow path 04

331.738,00 din. 331738.0 RSD 331.738,00 din.

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA543-50-B x 1.0

Flanged ball valve BA543-50-B

Flanged ball valve; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 50mm; DN ball 50mm; Pressure range 0...20bar; Flange ANSI150; Length 220mm; Ball T; Flange ISO5211 F07; Square 17mm

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart
