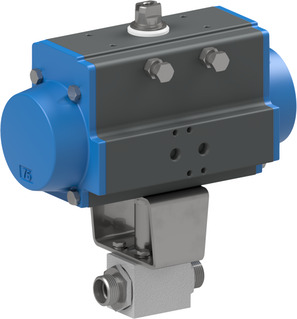

BA686-30S-S0-A03G

BA686-30S-S0-A03G

Ball valve with pneumatic actuator; Single acting; Male thread According to ISO 8434-1 (DIN 2353); Body, Ball 1.4571; Seals PEEK(ATEX)/FKM; With erosion protection ring; For gases; Medium temperature -20...+100°C; 30S; M42x2; ; Nominal diameter 25mm; Pressure range 0...350bar; Free of oil and grease; ; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Incl. ATEX-certificate; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.61 Kg
Short Itemnumber: BA68630SS0A03G
https://www.stasto.rs/web/image/product.template/151688/image_1920?unique=6fca8dd

ball valve with pneumatic actuator; single acting; male thread according to ISO 8434-1 (DIN 2353); body, ball AISI 316Ti; seals PEEK(ATEX)/FKM; with erosion protection ring; for gases; medium temperature -20...+100°C; 30S; M42x2; ; nominal diameter 25mm; pressure range 0...350bar; free of oil and grease; ; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; incl. ATEX-certificate; actuator PAS1255

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA686-30S-B-A03G x 1.0
BA686-30S-B-A03G
High pressure ball valve; Male thread according to ISO 8434-1 (DIN 2353); Drilled for mounting an actuator F05; Body, Ball 1.4571; Seals PEEK(ATEX)/FKM; With erosion protection ring; For gases; Medium temperature -20...+100°C; 30S/M42x2; ; Nominal diameter 25mm; Pressure range 0...350bar; Free of oil and grease; ; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Incl. ATEX-certificate
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
Add to Cart
Accessory Products
Certificate-MHA-ATEX
SYS-111-03
Certificate-MHA-ATEX
