BA701-12-D0

BA701-12-D0

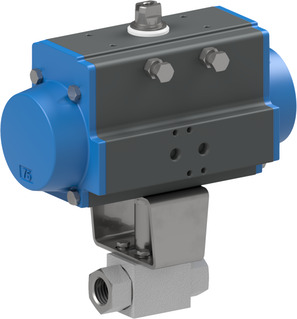

Ball valve with pneumatic actuator; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/FKM; With erosion protection ring; For gases; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+200°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Germany
Weight: 3.66 Kg
Short Itemnumber: BA70112D0
https://www.stasto.rs/web/image/product.template/157492/image_1920?unique=2830eb5

ball valve with pneumatic actuator; female thread; body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals PEEK/FKM; with erosion protection ring; for gases; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+200°C; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm; actuator PAD075

75.799,00 din. 75799.0 RSD 75.799,00 din.

cena na zahtev

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...500bar
Brand STASTO
Pressure range 0...500bar
Brand STASTO
BA701-12-B x 1.0 Pcs
BA701-12-B
High pressure ball valve; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/FKM; With erosion protection ring; For gases; Medium temperature -20...+200°C; Nominal diameter 13mm; G 1/2" Pressure range 0...500bar; Length 83mm; Drilled for mounting an actuator F03; Square 9mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
04806007007 x 1.0 Pcs
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
A4/223/96 x 1.0 Pcs
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
