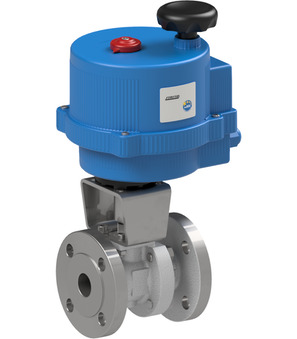

Flanged ball valve with electrical actuator BA764-50-0H

Flanged ball valve with electrical actuator BA764-50-0H

Flanged ball valve with electrical actuator Series BA764; Length According to EN558−1R27; Full bore; Body Steel A352-LCB; Ball 1.4301; Ball seal PTFE-Graphite reinforced; Stem seal Graphoil/PTFE/FKM-Peroxide; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 50mm; Flange PN40; Length 150mm; Operating time 9s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA764500H
https://www.stasto.rs/web/image/product.template/175939/image_1920?unique=e5e4a60

flanged ball valve with electrical actuator series BA764; length according to EN558−1R27; full bore; body steel A352-LCB; ball AISI 304; ball seal PTFE-graphite reinforced; stem seal Graphoil/PTFE/FKM-Peroxide; pressure range steam 0...15bar; medium temperature -20...+198°C; nominal diameter 50mm; flange PN40; length 150mm; operating time 9s; voltage 100-240VAC

157.356,00 din. 157356.0 RSD 157.356,00 din.

cena na zahtev

  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 50 mm
Length 150 mm
Flange PN40
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB060H
Operating time 9 s
BA764-50-LLD-A
BA764-50-LLD-A x 1.0
BA764-50-LLD-A
Flanged ball valve Series BA764-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB; Ball 1.4301; Ball seal PTFE-Graphite reinforced; Stem seal Graphoil/PTFE/FKM-Peroxide; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; With locking device; Nominal diameter 50mm; Flange PN40; Length 150mm
Add to Cart
Electrical actuator VB060-H
VB060-H x 1.0
Electrical actuator VB060-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
Accessory Products
Flanged ball valve 760000-50
760000-50
Flanged ball valve 760000-50
