BA770-14-PL

Name: BA770-14-PL
Brand: STASTO
SKU: BA770-14-PL
Price: 999999.0 RSD
Availability: InStock

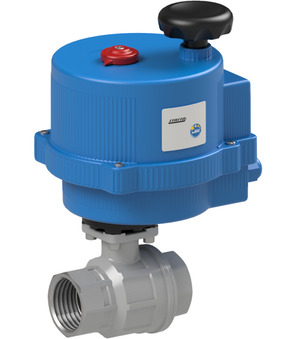

ball valve with electrical actuator; female thread; housing, ball AISI 316; seals PTFE-reinforced with carbographite/FKM; compensation hole; medium temperature -10...+160°C; RP 1/4"; DN 8mm; pressure range 0-140bar; length 55mm; operating time 8s; voltage 24VAC/DC; incl. accumulator for safety position NC; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77014PL

999.999,00 din. 999999.0 RSD 999.999,00 din.

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA770-14-L x 1.0

Ball valve made of stainless steel BA770-14-L

ball valve made of stainless steel series BA770; full bore; two-parts type; female thread; housing, ball AISI 316; seals PTFE-reinforced with carbographite/FKM; compensation hole; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0…140bar; length 55mm

Add to Cart

VB030-L-AKKU x 1.0

Electrical actuator VB030-L-AKKU

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Function NC

Add to Cart

RI3782 x 1.0
