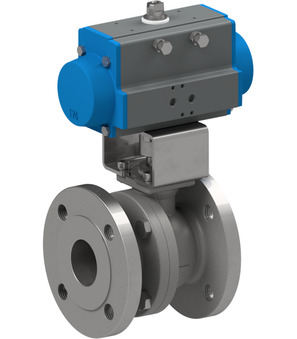

Flanged ball valve with pneumatic actuator BA779-80-S0-A3C

Name: Flanged ball valve with pneumatic actuator BA779-80-S0-A3C
Brand: STASTO
SKU: BA779-80-S0-A3C
Price: 999999.0 RSD
Availability: InStock

flanged ball valve with pneumatic actuator; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R27; housing, ball AISI 304L; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0-16bar; flange PN16; length 180mm; actuator PAS1255; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77980S0A3C

999.999,00 din. 999999.0 RSD 999.999,00 din.

excl. tax

DN
- 80 mm
Length
- 180 mm
Flange
- PN16
Design
- ATEX
Pressure range
- 0...16 bar
Actuator
- PAS1255
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16 bar
DN	80 mm
Flange	PN16
Length	180 mm

All specifications (6)

Specifications
Spare Parts

Pressure range	0...16 bar
DN	80 mm
Flange	PN16
Length	180 mm
Design	ATEX
Brand	STASTO

BA779-80-L-A3C x 1.0 Pcs

BA779-80-L-A3C

flanged ball valve; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R27; full bore; housing, ball AISI 304L; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0-16bar; flange PN16; length 180mm; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

PAS1255 x 1.0 Pcs

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

RI3528 x 1.0 Pcs
