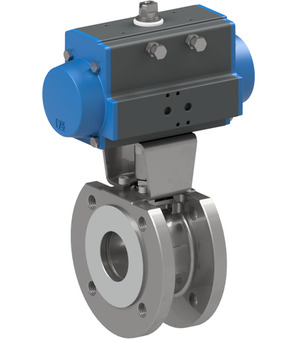

Flanged ball valve with pneumatic actuator BA811-40-D0-A-3C

Name: Flanged ball valve with pneumatic actuator BA811-40-D0-A-3C
Brand: STASTO
SKU: BA811-40-D0-A-3C
Price: 999999.0 RSD
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA811-D0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16/40; Body, Ball 1.4401; Seals PEEK Thickness Reduced; antifriction ring PEEK; Stem Reinforced Stainless steel 17-4-PH; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 64mm; Actuator PAD075; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA81140D0A3C

flanged ball valve with pneumatic actuator series BA811-D0-A; ATEX II 2 G/D; fire-safe; TA-Luft; flange PN16/40; body, ball AISI 316; seals PEEK thickness reduced; antifriction ring PEEK; stem reinforced stainless steel 17-4-PH; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+180°C; pressure range 0...16bar; nominal diameter 40mm; length 64mm; actuator PAD075; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness

999.999,00 din. 999999.0 RSD 999.999,00 din.

DN
- 80 mm
Length
- 122 mm
Design
- ATEX
Pressure range
- 0...16 bar
Actuator
- PAD085

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	122 mm
design
Design	ATEX
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAD085

BA811-40-L-A-3C x 1.0

Flanged ball valve BA811-40-L-A-3C

Flanged ball valve Series BA811-L-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PEEK Thickness Reduced; antifriction ring PEEK; Stem Reinforced Stainless steel 17-4-PH; Medium temperature -20...+180°C; Nominal diameter 40mm; Pressure range 0...16bar; Flange PN16/40; Length 64mm; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart
