BA863-40-D0-01

Name: BA863-40-D0-01
Brand: STASTO
SKU: BA863-40-D0-01
Price: 186496.0 RSD
Availability: InStock

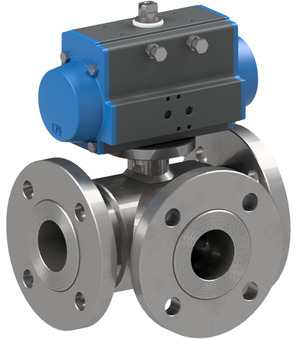

flanged ball valve with pneumatic actuator series BA863; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; length 200mm; pressure range 0...40bar; flange PN40; actuator PAD075; ball L; FDA-certification for seals

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.79 Kg
Short Itemnumber: BA86340D001

186.496,00 din. 186496.0 RSD 186.496,00 din.

DN
- 40 mm
Length
- 200 mm
Flange
- PN40
Ball
- L
Pressure range
- 0...40 bar
Actuator
- PAD075

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	40 mm
Length	200 mm
Flange	PN40
Designs
Ball	L
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAD075

BA863-40-B-01 x 1.0

Flanged ball valve BA863-40-B-01

Flanged ball valve Series BA863-B; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; Tri-Clamp connection; DIN 32676; TAB.2; Series A;Nominal diameter 40mm; DN ball 40mm; Pressure range 0...40bar; Flange PN40; Ball L; Flange ISO5211 F05; Square 14mm; FDA-certification For seals

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart
