BAB1-009-BLTV-T0
BA080-20-T0
BA080-20-T0
66.138,00 din.
66.138,00 din.
PAS1155-HA
PAS1155-HA
77.209,00 din.
77.209,00 din.

BAB1-009-BLTV-T0

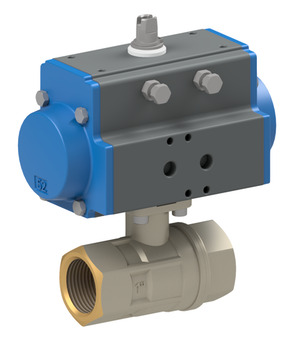

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAS0635; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.9 Kg
Short Itemnumber:BAB1009BLTVT0
https://www.stasto.rs/web/image/product.template/160933/image_1920?unique=812798d

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator PAS0635; safety position NO

66.138,00 din. 66138.0 RSD 66.138,00 din.

cena na zahtev

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    Ball valve made of brass 2500-2"
    2500-2" x 1.0
    Ball valve made of brass 2500-2"
    Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...40bar; Length 138mm; Flange ISO5211 F05; Square 11mm
    Add to Cart
    Pneumatic actuator PAS0635
    PAS0635 x 1.0
    Pneumatic actuator PAS0635
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
    Add to Cart
    ​
