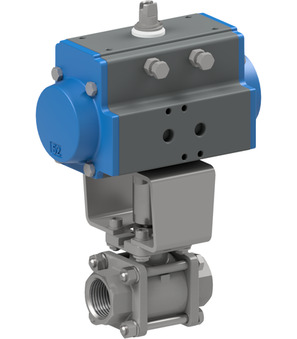

BAC1-004-SSTV-D0E

BAC1-004-SSTV-D0E

Ball valve with pneumatic actuator; ATEX II 2G/D c T3; TA-Luft; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.693 Kg
Short Itemnumber: BAC1004SSTVD0E
https://www.stasto.rs/web/image/product.template/86604/image_1920?unique=94b97ec

Ball valve with pneumatic actuator; ATEX II 2G/D c T3; TA-Luft; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD052

45.602,00 din. 45602.0 RSD 45.602,00 din.

cena na zahtev

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
Ball valve made of stainless steel BA033-12-L-A
BA033-12-L-A x 1.0
Ball valve made of stainless steel BA033-12-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
Add to Cart
