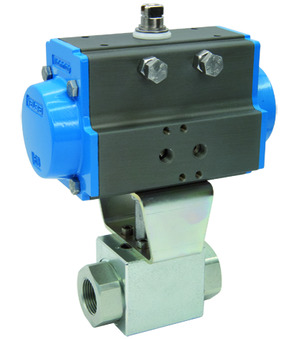

Ball valve with pneumatic actuator BAH1-008-UCPN-D0

Ball valve with pneumatic actuator BAH1-008-UCPN-D0

BKH-G112-25-11231-B0FA
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 11/2"; Nominal diameter 25mm; Pressure range 0-400bar; Length 124mm; Drilled for mounting an actuator F05
PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05
VK1714
Square adapter Series VK; 17X14; Length 17mm; Material Stahl

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 5.1 Kg
Short Itemnumber: BAH1008UCPND0
https://www.stasto.rs/web/image/product.template/210476/image_1920?unique=d58514c

BKH-G112-25-11231-B0FA
BKH-G112-25-11231-B0FA
PAD075
pneumatic actuator series PAD; ATEX II 2 G/D c T6; double acting; rotation angle 90°; according to ISO 5211/NAMUR; operating pressure range max. 8bar; diameter 75mm; flange ISO5211 F05/F07; female square 17mm; torque at 5,5bar 66Nm
A4/338/99
bolt; AISI 303; diameter 25mm; height of the bolt 54mm; male square 14mm; height of the male square 15mm; female square 14mm; height of the female square 15mm
04808007001
mounting bridge; zinc plated steel; F05/F07-F05
VK1714
square adapter series VK; 17X14; length 17mm; material Stahl

59.737,00 din. 59737.0 RSD 59.737,00 din.

cena na zahtev

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...350 bar
Female thread G 1 1/2"
DN 25 mm
Length 124 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...350 bar
Female thread G 1 1/2"
DN 25 mm
Length 124 mm
Design ATEX
Brand STASTO

BAH1-008-UCPN-D0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
BKH-G112-25-11231-B0FA x 1.0 Pcs
BKH-G112-25-11231-B0FA
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 11/2"; Nominal diameter 25mm; Pressure range 0-400bar; Length 124mm; Drilled for mounting an actuator F05
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
