Ball valve with pneumatic actuator BAH7-30S-UCPN-D0

Price:

999.999,00 din.
Ball valve with pneumatic actuator Series BAH7-D0 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BAH7-D0
  6. BAH7-30S-UCPN-D0

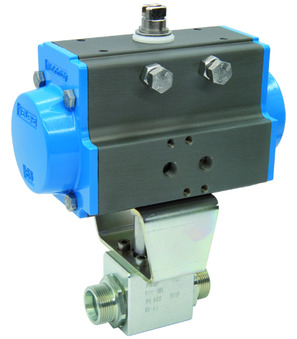

Ball valve with pneumatic actuator BAH7-30S-UCPN-D0
Ball valve with pneumatic actuator BAH7-28L-UCPN-D0
Ball valve with pneumatic actuator BAH7-28L-UCPN-D0
999.999,00 din.
999.999,00 din.
Ball valve with pneumatic actuator BAH1-004-UCPN-D0
Ball valve with pneumatic actuator BAH1-004-UCPN-D0
41.889,00 din.
41.889,00 din.

Ball valve with pneumatic actuator BAH7-30S-UCPN-D0

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 30S/M42x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 120mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.43 Kg
Short Itemnumber:BAH730SUCPND0
https://www.stasto.rs/web/image/product.template/87954/image_1920?unique=6fca8dd

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 30S/M42x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 120mm; Actuator PAD075

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Connection 30S/M42x2
DN 24 mm
Length 120 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAD075

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAH7-D0_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAH730SUCPND0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAH7-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BAH7-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH7-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAH7-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BAH7-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAH7-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BAH7-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAH7-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH7-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BAH7-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BAH7-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BAH7-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH7-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BAH7-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH7-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH7-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BAH7-D0_SV.pdf
Download
BKH-30S-25 11231-B0FA x 1.0
BKH-30S-25 11231-B0FA
High pressure ball valve; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; Connection 30S/M42x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 120mm; Drilled for mounting an actuator F05
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
Add to Cart
