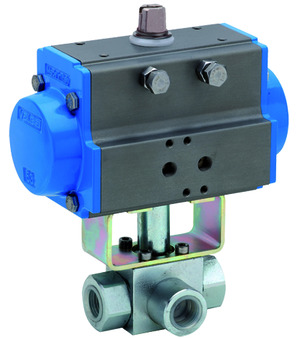

Ball valve with pneumatic actuator BAI1-005-UCPN-D0

Ball valve with pneumatic actuator BAI1-005-UCPN-D0

Ball valve with pneumatic actuator Series BAI1; Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar; G 3/4"; Nominal diameter 18mm; Length 96mm; Actuator PAD063; Ball L

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.73 Kg
Short Itemnumber: BAI1005UCPND0
https://www.stasto.rs/web/image/product.template/87025/image_1920?unique=bcfc56d

Ball valve with pneumatic actuator Series BAI1; Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar; G 3/4"; Nominal diameter 18mm; Length 96mm; Actuator PAD063; Ball L

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

excl. tax
  • Female thread
  • DN
  • Length
  • Actuator
  • Brand
  • Ball

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...350bar
Female thread G 3/4"
DN 18 mm
Length 96 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...350bar
Female thread G 3/4"
DN 18 mm
Length 96 mm
Ball L
Brand STASTO

BAI1-005-UCPN-D0

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
04806007007 x 1.0 Pcs
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
A4/337/99 x 1.0 Pcs
A4/337/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 46mm; Male square 14mm; Height of the male square 17mm; Female square 14mm; Height of the female square 13mm
