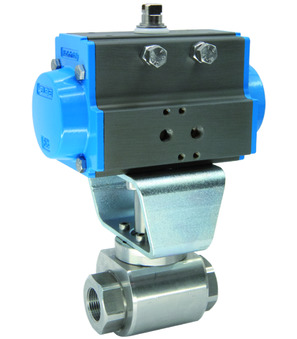

Ball valve with pneumatic actuator BAK1-005-SSKV-S0

Ball valve with pneumatic actuator BAK1-005-SSKV-S0

Ball valve with pneumatic actuator Series BAK1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases; G 3/4"; Nominal diameter 20mm; Pressure range 0-250bar; Length 96mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Germany
Weight: 9.65 Kg
Short Itemnumber:BAK1005SSKVS0

Ball valve with pneumatic actuator Series BAK1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases; G 3/4"; Nominal diameter 20mm; Pressure range 0-250bar; Length 96mm; Actuator PAS1005

999.999,00 din. 999999.0 RSD 999.999,00 din.

Female thread
- G 3/4"
DN
- 20 mm
Length
- 96 mm
Pressure range
- 0...250 bar
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to Cart

dimension
Female thread	G 3/4"
DN	20 mm
Length	96 mm
pressure
Pressure range	0...250 bar
characteristics
Actuator	PAS1005

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

2

Data sheet_Ball valve with pneumatic actuator Series BAH1-SSKV-D0_EN.pdf

Data sheet_Ball valve with pneumatic actuator Series BAK1_EN.pdf

CAD / 3D

1

CADSTEP_BAK1005SSKVS0.stp

Datové listy

2

Datový list_kulový kohout s otočným pneumatickým pohonem série BAH1-SSKV-D0_CS.pdf

Datový list_kulový kohout s otočným pneumatickým pohonem série BAK1_CS.pdf

Data Sheets

1

Datablad_Kugleventil med pneumatisk drejedrev Serie BAH1-SSKV-D0_DA_DK.pdf

Datenblätter

2

Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH1-SSKV-D0_DE.pdf

Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAK1_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAH1-SSKV-D0_EL_GR.pdf

Data Sheets

1

Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BAH1-SSKV-D0_ES.pdf

Data Sheets

1

Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAH1-SSKV-D0_FI.pdf

Data Sheets

1

Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BAH1-SSKV-D0_FR.pdf

Data Sheets

1

Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAH1-SSKV-D0_HR.pdf

Adatlapok

2

Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH1-SSKV-D0_HU.pdf

Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAK1_HU.pdf

Data Sheets

1

Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BAH1-SSKV-D0_IT.pdf

Data Sheets

1

Datablad_Kuleventil med pneumatisk roterende aktuator Serie BAH1-SSKV-D0_NB_NO.pdf

Data Sheets

1

Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BAH1-SSKV-D0_NL.pdf

Karty katalogowe

2

Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH1-SSKV-D0_PL.pdf

Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAK1_PL.pdf

Data Sheets

1

Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BAH1-SSKV-D0_RO.pdf

Podatkovni listi

2

Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH1-SSKV-D0_SL.pdf

Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAK1_SL.pdf

Data Sheets

2

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH1-SSKV-D0_SRLATIN.pdf

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAK1_SRLATIN.pdf

Data Sheets

1

Datablad_Kulventil med pneumatiskt vriddon Serie BAH1-SSKV-D0_SV.pdf

RKH-G3/4-204465G-DFA x 1.0

RKH-G3/4-204465G-DFA

Ball valve with cover for actuator F04-SW14 PN 250, thread f/f, 3/4", DN20, body 1.4571 seal PEEK/FKM, for neutral gases

Pneumatic actuator PAS1005

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

ATSV0704 x 1.0

ATSV0704

Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm

A4/338/99 x 1.0

A4/338/99

Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm

Square adapter VK1714

VK1714 x 1.0

Square adapter VK1714

Square adapter Series VK; 17X14; Length 17mm; Material Stahl
