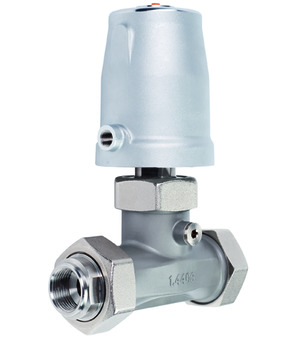

Pinch valve PI03-12-EZS-53
Pinch valve Series PI03; NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C; RP 1/2"; DN 15mm; Pressure range 0…6bar; Control pressure 5,6…10bar; Diameter Actuator 50mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 2.17 Kg
Short Itemnumber: PI0312EZS53
Country of origin: Germany
Weight: 2.17 Kg
Short Itemnumber: PI0312EZS53
pinch valve series PI03; NC; connection parts AISI 316L; tube EPDM food safe; medium temperature -30...+95°C; RP 1/2"; DN 15mm; pressure range 0…6bar; control pressure 5,6…10bar; diameter actuator 50mm
| dimension | |
|---|---|
| Female thread | RP 1/2" |
| DN | 15 mm |
| Diameter Actuator | 50 mm |
| pressure | |
| Pressure range | 0...6 bar |
| Control pressure | 5,6...10 bar |
No spare parts are available for this product.
