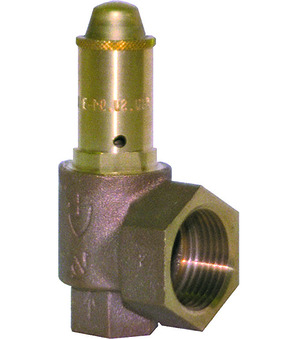

Safety valve, full stroke 1"-11/2"-23-1203
Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 1"; Outlet G 11/2"; DN 23mm; Discharge capacity at 6bar(g) air 1203Nm3/h
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.95 Kg
Short Itemnumber:SF0110W23X
Country of origin: Germany
Weight: 1.95 Kg
Short Itemnumber:SF0110W23X
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30…+130°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 1"; outlet G 11/2"; DN 23mm; discharge capacity at 6bar(g) air 1203Nm3/h
| dimension | |
|---|---|
| Female thread | G 1" |
| DN | 23 mm |
| Female thread 2 | G 1 1/2" |
| characteristics | |
| Blow-off capacity at 6 bar air | 1203 Nm3/h |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Safety valve, full stroke Series SF01_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Safety valve, full stroke Series SF01_EN.pdf
Download
CAD / 3D
1CADSTEP_SF0110W23X.stp
Download
No spare parts are available for this product.
