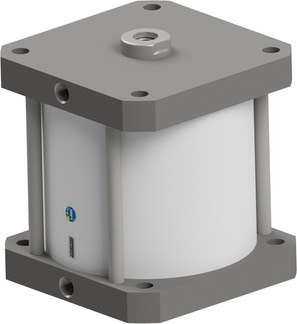

Short stroke magnetic cylinder Series SHDM; Double acting;; Pressure range 1...10bar; Piston rod with female thread; Diameter 160mm; Stroke 75mm; Piston rod thread M20; Connection G 3/8"; Push force at 6 bar 12057N
Country of origin: Italy
Weight: 8.28 Kg
Short Itemnumber: SHDM16075
Short stroke magnetic cylinder Series SHDM; Double acting;; Pressure range 1...10bar; Piston rod with female thread; Diameter 160mm; Stroke 75mm; Piston rod thread M20; Connection G 3/8"; Push force at 6 bar 12057N
Technical specifications
| Connection | G 3/8" |
|---|---|
| Pressure range | 1...10bar |
| Diameter | 160 mm |
| Stroke | 75 mm |
| Connection | G 3/8" |
| Pressure range | 1...10bar |
| Diameter | 160 mm |
| Stroke | 75 mm |
| Piston rod thread | M20 |
| Push force at 6 bar | 12057 N |
| Function | Double acting |
SHDM160-75
