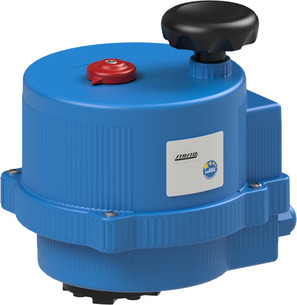

Electrical actuator VB030-L-P0S-UL
Electrical actuator Series VB-UL; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; UL-Approval; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
Country of origin: Italy
Weight: 2.17 Kg
Short Itemnumber:VB030LP0SUL
electrical actuator series VB-UL; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; incl. positioner 4-20mA/0-10V; UL-approval; torque 30Nm; operating time 8s; flange ISO5211 F03/F05-Stern 11 mm; voltage 24VAC/DC; protection class IP67
| Designs | |
|---|---|
| Flange ISO5211 | F03/F05-star 11mm |
| Electrical key figures | |
| Voltage | 24VAC/DC |
| characteristics | |
| Torque | 30 Nm |
| Operating time | 8 s |
| Others | |
| Protection class | IP67 |
