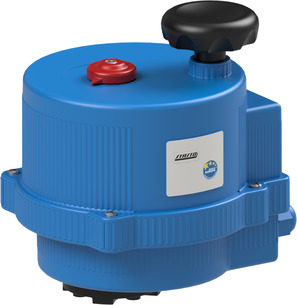

Electrical actuator VB110-L-P0S

Electrical actuator VB110-L-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

Intrastat No.: 85013100
Country of origin: Italy
Weight: 4.82 Kg
Short Itemnumber: VB110LP0S
https://www.stasto.rs/web/image/product.template/89869/image_1920?unique=0ec923a

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

106.808,00 din. 106808.0 RSD 106.808,00 din.

cena na zahtev

  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
Contact Us

Share

Designs
Flange ISO5211 F07/F10-star 17mm
Electrical key figures
Voltage 24VAC/DC
characteristics
Torque 110 Nm
Operating time 27 s
Others
Protection class IP67

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_VB110LP0S.stp
Download
No spare parts are available for this product.
