Ball valve with pneumatic actuator BAH1-006-UCPN-D0A

Price:

54.120,00 din.
Ball valve with pneumatic actuator Series BAH1-A Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with pneumatic actuator Series BAH1-A
  6. BAH1-006-UCPN-D0A

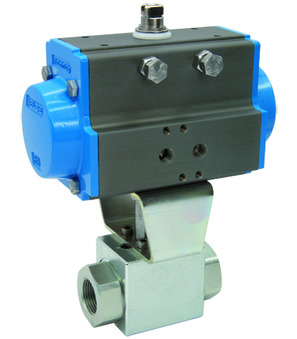

Ball valve with pneumatic actuator BAH1-006-UCPN-D0A
Ball valve with pneumatic actuator BAH1-005-UCPN-D0A
Ball valve with pneumatic actuator BAH1-005-UCPN-D0A
41.419,00 din.
41.419,00 din.
Ball valve with pneumatic actuator BAH1-007-UCPN-D0A
Ball valve with pneumatic actuator BAH1-007-UCPN-D0A
999.999,00 din.
999.999,00 din.

Ball valve with pneumatic actuator BAH1-006-UCPN-D0A

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1"; Nominal diameter 24mm; Pressure range 0...350bar; Length 113mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.03 Kg
Short Itemnumber:BAH1006UCPND0A
https://www.stasto.rs/web/image/product.template/87926/image_1920?unique=bbc91d7

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1"; Nominal diameter 24mm; Pressure range 0...350bar; Length 113mm; Actuator PAD075

54.120,00 din. 54120.0 RSD 54.120,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1"
DN 24 mm
Length 113 mm
design
Design ATEX
pressure
Pressure range 0...350 bar
characteristics
Actuator PAD075
BKH-G1-25 11231-B0FA x 1.0
BKH-G1-25 11231-B0FA
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 1"; Nominal diameter 24mm; Pressure range 0-350bar; Length 113mm; Drilled for mounting an actuator F05
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
