Ball valve with pneumatic actuator BAH1-007-UCPN-D0A
Ball valve with pneumatic actuator BAH1-006-UCPN-D0A
Ball valve with pneumatic actuator BAH1-006-UCPN-D0A
54.120,00 din.
54.120,00 din.
Ball valve with pneumatic actuator BAH1-008-UCPN-D0A
Ball valve with pneumatic actuator BAH1-008-UCPN-D0A
999.999,00 din.
999.999,00 din.

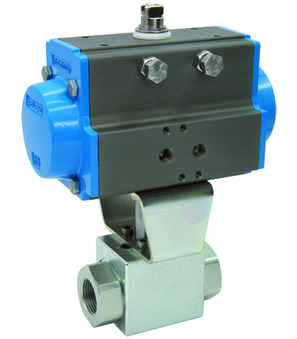

Ball valve with pneumatic actuator BAH1-007-UCPN-D0A

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 11/4"; Nominal diameter 24mm; Pressure range 0...350bar; Length 121mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.08 Kg
Short Itemnumber:BAH1007UCPND0A
https://www.stasto.rs/web/image/product.template/87930/image_1920?unique=6fca8dd

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 11/4"; Nominal diameter 24mm; Pressure range 0...350bar; Length 121mm; Actuator PAD075

999.999,00 din. 999999.0 RSD 999.999,00 din.

cena na zahtev

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1 1/4"
DN 24 mm
Length 121 mm
design
Design ATEX
pressure
Pressure range 0...350 bar
characteristics
Actuator PAD075
BKH-G114-25-11231-B0FA x 1.0
BKH-G114-25-11231-B0FA
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 11/4"; Nominal diameter 25mm; Pressure range 0-350bar; Length 121mm; Drilled for mounting an actuator F05
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
