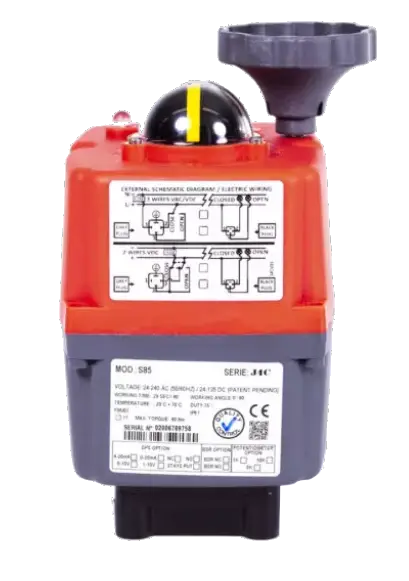

Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 85Nm; Operating time 29s; Flange ISO5211 F05/F07-star 17mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67
Country of origin: Spain
Weight: 2.8 Kg
Short Itemnumber: J4C850H29Q17
electrical actuator series J4C; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; torque 85Nm; operating time 29s; flange ISO5211 F05/F07-star 14mm; voltage 24...240VDC/AC (50-60Hz); protection class IP67
Technical specifications
| Torque | 85 Nm |
|---|---|
| Operating time | 29 s |
| Flange ISO5211 | F03/F05-Stern 17 mm |
| Voltage | 24...240VDC/AC (50-60Hz) |
| Torque | 85 Nm |
| Operating time | 29 s |
| Flange ISO5211 | F03/F05-Stern 17 mm |
| Voltage | 24...240VDC/AC (50-60Hz) |
| Protection class | IP67 |
J4C85-0H29-Q17
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Elektroantrieb Serie J4C · DE
Data sheet 17,0 MB Updated 13/06/2026
Assembly and Operating Instructions
1-
PDF
Betriebsanleitung · Elektroantrieb Serie J4C · DE
Operating instructions 7,6 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Electrical actuator Series J4C · EN
Data sheet 16,4 MB Updated 13/06/2026
Assembly and Operating Instructions
1-
PDF
Operating instructions · Electrical actuator Series J4C · EN
Operating instructions 6,9 MB Updated 13/06/2026
