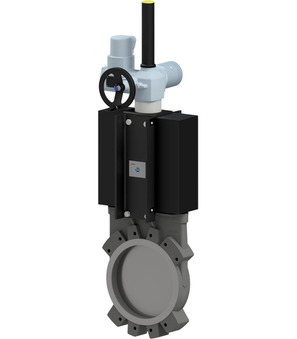

nožasti zasun sa električnim pogonom A1EM2I6-B-150-01
knife gate valve with electric actuator series A1EM2I6-B; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed silicone; packing PTFE-synthetic; sliding guide PTFE; protection plates steel; nominal flange pressure PN10/16; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+200°C; DN 150mm; length 60mm; pressure range 0…10bar; actuator AUMA SA07.2
Земља порекла: Španija
Кратак број артикла: A1EM2I6B15001
knife gate valve with electric actuator series A1EM2I6-B; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed silicone; packing PTFE-synthetic; sliding guide PTFE; protection plates steel; nominal flange pressure PN10/16; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+200°C; DN 150mm; length 60mm; pressure range 0…10bar; actuator AUMA SA07.2
| dimenzija | |
|---|---|
| DN | 150 mm |
| dužina | 60 mm |
| pritisak | |
| opseg pritiska | 0...10 bar |
| karakteristike | |
| aktuator | AUMA SA07.2 |
