aktiviranje električno/opružno; eksterna kontrolna vazdušna konekcija; opseg pritiska -1...0bar; NC; tip namotaja SCN; veličina konektora 32mm

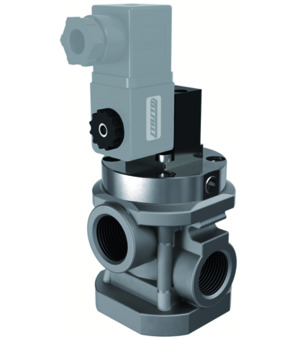

3/2 ispusni ventil serije PV -
aktiviranje električno/opružno; unutrašnji kontrolni vazduh; opseg pritiska 3...10bar; NC; tip namotaja SCN; veličina konektora 32mm
3/2 ispusni ventil serije PV
3/2 ventili - vazduh/vakuum
3/2 ispusni ventil serije PV
aktiviranje električno/opružno; eksterna kontrolna vazdušna konekcija; opseg pritiska -1...0bar; NC; tip namotaja SCN; veličina konektora 32mm
Grundversion
| priključak | DN | komandni priključak | protok | napon | konstrukcija | Tip napona | Tip | Sequence |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 mm | M5 | 5500 Nl/min | - | - | - | PV32W1S6E12V | 2900000 |
| 3/4" | 20 mm | M5 | 6500 Nl/min | - | - | - | PV32W1S6E34V | 2900013 |
Varianten
| priključak | DN | komandni priključak | protok | napon | konstrukcija | Tip napona | Tip | Sequence |
|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 mm | M5 | 5500 Nl/min | 12VDC | standard | - | PV32W1S6E12V-SCN01200-C003-32-6 | 2900001 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 12VDC | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E12V-SCN01200-C003-32-LV-2 | 2900002 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 24VDC | standard | - | PV32W1S6E12V-SCN02400-C003-32-6 | 2900003 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 24VDC | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E12V-SCN02400-C003-32-LV-2 | 2900004 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 24V/50-60Hz | standard | - | PV32W1S6E12V-SCN02450-C003-32-6 | 2900005 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 24V/50-60Hz | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E12V-SCN02450-C003-32-LV-2 | 2900006 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 115V/50-60Hz | standard | - | PV32W1S6E12V-SCN11550-C003-32-6 | 2900007 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 115V/50-60Hz | sa zalivenim PVC-kablom (2m) | - | PV32W1S6E12V-SCN11550-C003-31-CV20-6 | 2900008 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 115V/50-60Hz | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E12V-SCN11550-C003-32-LV-1 | 2900009 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 230V/50-60Hz | standard | - | PV32W1S6E12V-SCN23050-C003-32-6 | 2900010 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 230V/50-60Hz | sa zalivenim PVC-kablom (2m) | - | PV32W1S6E12V-SCN23050-C003-31-CV20-6 | 2900011 |
| 1/2" | 15 mm | M5 | 5500 Nl/min | 230V/50-60Hz | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E12V-SCN23050-C003-32-LV-1 | 2900012 |
| 3/4" | 20 mm | M5 | 6500 Nl/min | 12VDC | standard | - | PV32W1S6E34V-SCN01200-C003-32-6 | 2900014 |
| 3/4" | 20 mm | M5 | 6500 Nl/min | 12VDC | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E34V-SCN01200-C003-32-LV-2 | 2900015 |
| 3/4" | 20 mm | M5 | 6500 Nl/min | 24VDC | standard | - | PV32W1S6E34V-SCN02400-C003-32-6 | 2900016 |
| 3/4" | 20 mm | M5 | 6500 Nl/min | 24VDC | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E34V-SCN02400-C003-32-LV-2 | 2900017 |
| 3/4" | 20 mm | M5 | 6500 Nl/min | 24V/50-60Hz | standard | - | PV32W1S6E34V-SCN02450-C003-32-6 | 2900018 |
| 3/4" | 20 mm | M5 | 6500 Nl/min | 24V/50-60Hz | sa ugrađenom žutom LED diodom i VDR | - | PV32W1S6E34V-SCN02450-C003-32-LV-2 | 2900019 |
